Snvee-A-54MB 445-460W(N-Type)
N-Type Black Hole Series
Snvee-A-54MB 445W-460W Up to 23.6%
Full Black Design
▪ No grid lines on the front
Higher Power Output
▪ Higher efficiency: 23.6%
▪ Lower degradation:1 Year≤1.0%, 2-30 Year≤0.35%
▪ Better Temperature Coefficient:-0.29%/ ℃
Optimized Balance of System (BOS)
▪ Significant savings on mounting structure, cabling, and labour cost
Complete Set of Quality Management System
▪ IEC 61730 (2016) IEC 61215 (2021)
▪ ISO 9001:2015 Quality Management System
▪ ISO 14001:2015 Environmental Management System
▪ ISO 45001:2018 Occupational Safety and Management System
N-Type Black Hole Series Snvee-A-54MB
460W Output
23.6% Efficiency
≤1% First-year Degradation
≤0.35% Annual Degradation from Year 2-30
Electrical Characteristics (STC:AM1.51000W/m²25℃ NOCT:AM1.5800W/m²20℃1m/s) Power Tolerance:0~+3% Max Power Test Uncertainty:±3%
| Model | Snvee-A445-54Mb | Snvee-A450-54Mb | Snvee-A455-54Mb | Snvee-A460-54Mb |
|---|---|---|---|---|
| Test Conditions | STCNOCT | STCNOCT | STCNOCT | STCNOCT |
| Pmox [W] | 445 336 | 450 339 | 455 343 | 460 347 |
| Voc[M] | 40.09 37.76 | 40.19 37.85 | 40.29 37.94 | 40.39 38.04 |
| Vmp[M] | 33.91 31.94 | 34.01 32.03 | 34.11 32.12 | 34.21 32.22 |
| Isc[A] | 13.69 11.10 | 13.75 11.15 | 13.81 11.20 | 13.87 11.25 |
| Imp[A] | 13.13 10.52 | 13.24 10.61 | 13.35 10.70 | 13.45 10.78 |
| Module Efficiency | 22.8% | 23.0% | 23.3% | 23.6% |

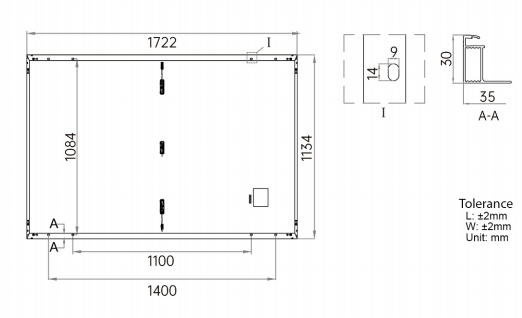

Mechanical Specification
| Cell Type | Mono-crystalline Silicon |
| Front Cover Mono glass | 3.2 mm tempered glass, with anti-reflection coating |
| Frame | Black anodized aluminum |
| Cable | 4mm²(IEC) 12AWG(UL) 350mm or Customized Length |
| No. of Cells | 108(6*18) |
| Junction Box | IP68, three bypass diodes |
| Connector | MC4 compatible |
| Weight | 20.5kg±3% |
| Dimension | 1722*1134*30mm |
| Package Detail | 36pcs per pallet/216 pcs per 20'GP/936pcs per 40'HQ |
Temeprature Ratings (STC)
| Temperature Coefficient of Isc | +0.05%/℃ |
| Temperature Coefficient of Voc | -0.24%/℃ |
| Temperature Coefficient of Pm | -0.29%/℃ |
Installation Guide
| Operation Temperature | -40℃-+85℃ |
| Maximum Series Fuse Rating | 25A |
| Protection Class | ClassⅡ |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V |
| Maximum Static Loading | Front 5400Pa Back 2400Pa |
| Hail Test | 25 mm diameter hail at 23 m/s |
| Fire Rating | IEC Class C |
