Snvee-A-72MB 595-615W(N-Type)
N-Type Black Hole Series
Snvee-A-72MB 595W-615W Up to 23.8%
Full Black Design
▪ No grid lines on the front
Higher Power Output
▪ Higher efficiency: 23.8%
▪ Lower degradation:1 Year≤1.0%, 2-30 Year≤0.35%
▪ Better Temperature Coefficient:-0.29%/ ℃
Optimized Balance of System (BOS)
▪ Significant savings on mounting structure, cabling, and labour cost
Complete Set of Quality Management System
▪ IEC 61730 (2016) IEC 61215 (2021)
▪ ISO 9001:2015 Quality Management System
▪ ISO 14001:2015 Environmental Management System
▪ ISO 45001:2018 Occupational Safety and Management System
N-Type Black Hole Series Snvee-A-72MB
615W Output
23.8% Efficiency
≤1% First-year Degradation
≤0.35% Annual Degradation from Year 2-30
Electrical Characteristics (STC:AM1.51000W/m²25℃ NOCT:AM1.5800W/m²20℃1m/s Power Tolerance:0~+3% Max Power Test Uncertainty:±3%)
| Model | Snvee-A595-72Mb | Snvee-A600-72Mb | Snvee-A605-72Mb | Snvee-A610-72Mb | Snvee-A615-72Mb |
|---|---|---|---|---|---|
| Test Conditions | STCNOCT | STCNOCT | STCNOCT | STCNOCT | STCNOCT |
| Pmox [W] | 595 449 | 600 453 | 605456 | 610 460 | 615 464 |
| Voc[M] | 53.39 50.28 | 53.4950.38 | 53.59 50.47 | 53.69 50.56 | 53.79 50.66 |
| Vmp[M] | 44.91 42.30 | 45.0 42.39 | 45.11 42.48 | 45.21 42.58 | 45.31 42.67 |
| Isc[A] | 13.73 11.13 | 13.79 11.18 | 13.85 11.23 | 13.91 11.28 | 13.97 11.33 |
| Imp[A] | 13.25 10.62 | 13.34 10.69 | 13.42 10.75 | 13.50 10.82 | 13.58 10.88 |
| Module Efficiency | 23.0% | 23.2% | 23.4% | 23.6% | 23.8% |

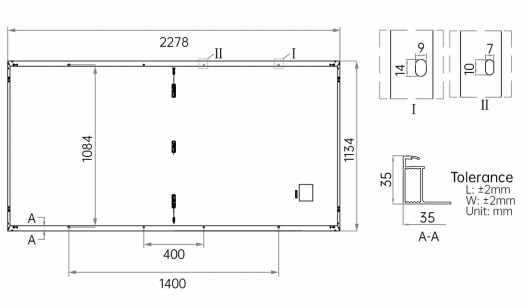

Mechanical Specification
| Cell Type | Mono-crystalline Silicon |
| Front Cover Mono glass | 3.2 mm tempered glass, with anti-reflection coating |
| Frame | Black anodized aluminum |
| Cable | 4mm²(IEC) 12AWG(UL) 350mm or Customized Length |
| No. of Cells | 144(6*24) |
| Junction Box | IP68, three bypass diodes |
| Connector | MC4 compatible |
| Weight | 28.2kg±3% |
| Dimension | 2278*1134*35mm |
| Package Detail | 31pcs per pallet/155 pcs per 20'GP/620pcs per 40'HQ |
Temeprature Ratings (STC)
| Temperature Coefficient of Isc | +0.05%/℃ |
| Temperature Coefficient of Voc | -0.24%/℃ |
| Temperature Coefficient of Pm | -0.29%/℃ |
Installation Guide
| Operation Temperature | -40℃-+85℃ |
| Maximum Series Fuse Rating | 25A |
| Protection Class | ClassⅡ |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V |
| Maximum Static Loading | Front 5400Pa Back 2400Pa |
| Hail Test | 25 mm diameter hail at 23 m/s |
| Fire Rating | IEC Class C |
