Snvee-A-72MW 600-620W(N-Type)
N-Type White Hole Series
Snvee-A-72MW 600W-620W Up to 24.0%
Full Black Design
▪ No grid lines on the front
Higher Power Output
▪ Higher efficiency: 24.0%
▪ Lower degradation:1 Year≤1.0%, 2-30 Year≤0.35%
▪ Better Temperature Coefficient:-0.29%/ ℃
Optimized Balance of System (BOS)
▪ Significant savings on mounting structure, cabling, and labour cost
Complete Set of Quality Management System
▪ IEC 61730 (2016) IEC 61215 (2021)
▪ ISO 9001:2015 Quality Management System
▪ ISO 14001:2015 Environmental Management System
▪ ISO 45001:2018 Occupational Safety and Management System
N-Type White Hole Series Snvee-A-72MW
620W Output
24.0% Efficiency
≤1% First-year Degradation
≤0.35% Annual Degradation from Year 2-30
Electrical Characteristics (STC:AM1.51000W/m²25℃ NOCT:AM1.5800W/m²20℃1m/s) Power Tolerance:0~+3% Max Power Test Uncertainty:±3%
| Model | Snvee-A600-72Mw | Snvee-A605-72Mw | Snvee-A610-72Mw | Snvee-A615-72Mw | Snvee-A620-72Mw |
|---|---|---|---|---|---|
| Test Conditions | STCNOCT | STCNOCT | STCNOCT | STCNOCT | STCNOCT |
| Pmox [W] | 600 453 | 605 456 | 610 460 | 615 464 | 620 468 |
| Voc[M] | 53.29 50.19 | 53.39 50.28 | 53.49 50.38 | 53.59 50.47 | 53.69 50.56 |
| Vmp[M] | 44.81 42.20 | 44.91 42.30 | 45.01 42.39 | 45.11 42.48 | 45.21 42.58 |
| Isc[A] | 13.92 11.29 | 13.98 11.34 | 14.04 11.39 | 14.10 11.44 | 14.16 11.48 |
| Imp[A] | 13.40 10.74 | 13.48 10.80 | 13.56 10.86 | 13.64 10.93 | 13.72 11.00 |
| Module Efficiency | 23.2% | 23.4% | 23.6% | 23.8% | 24.0% |
Mechanical Specification
| Cell Type | Mono-crystalline Silicon |
| Front Cover Mono glass | 3.2 mm tempered glass with anti-reflection coating |
| Frame | Anodized aluminum |
| Cable | 4mm²(IEC) 12AWG(UL) 350mm or Customized Length |
| No. of Cells | 144(6*24) |
| Junction Box | IP68, three bypass diodes |
| Connector | MC4 compatible |
| Weight | 28.2kg±3% |

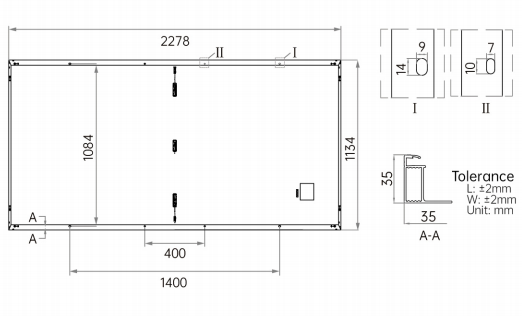

| Dimension | 2278*1134*35mm |
| Package Detail | 31pcs per pallet/155 pcs per 20'GP/620pcs per 40'HQ |
Temeprature Ratings (STC)
| Temperature Coefficient of Isc | +0.05%/℃ |
| Temperature Coefficient of Voc | -0.24%/℃ |
| Temperature Coefficient of Pm | -0.29%/℃ |
Installation Guide
| Operation Temperature | -40℃-+85℃ |
| Maximum Series Fuse Rating | 25A |
| Protection Class | ClassⅡ |
| Voc and Isc Tolerance | ±3% |
| Maximum System Voltage | DC1500V |
| Maximum Static Loading | Front 5400Pa Back 2400Pa |
| Hail Test | 25 mm diameter hail at 23 m/s |
| Fire Rating | IEC Class C |
